What are the basic components of melt-spinning masterbatch adding equipment?

1. Masterbatch storage silo: the cornerstone of stable supply
The masterbatch storage silo is the starting point of the melt-spinning masterbatch adding system, responsible for storing and stably supplying masterbatch to subsequent processing links. A well-designed masterbatch storage silo can not only ensure that the physical and chemical properties of the masterbatch remain stable during storage, but also effectively prevent the masterbatch from moisture, agglomeration or contamination, thereby ensuring the quality of the final product.

The masterbatch storage silo is usually made of stainless steel or special plastic materials to resist the corrosive components that may be contained in the masterbatch. The silo structure needs to consider good sealing and be equipped with an effective dehumidification system to maintain a dry environment in the silo. In addition, in order to facilitate the flow and removal of the masterbatch, the bottom of the silo is designed as a slope or equipped with a vibrator to ensure that the masterbatch can smoothly enter the discharge port to avoid the occurrence of bridging.

In production lines with a high degree of automation, the masterbatch storage bin is also equipped with a material level detection device to monitor the masterbatch inventory in the bin in real time, and to link with the control system to achieve automatic replenishment of the masterbatch to ensure the continuity of the production process. Some high-end equipment will also integrate temperature control functions to adjust the temperature in the bin according to the characteristics of the masterbatch to further ensure the stability of the masterbatch.

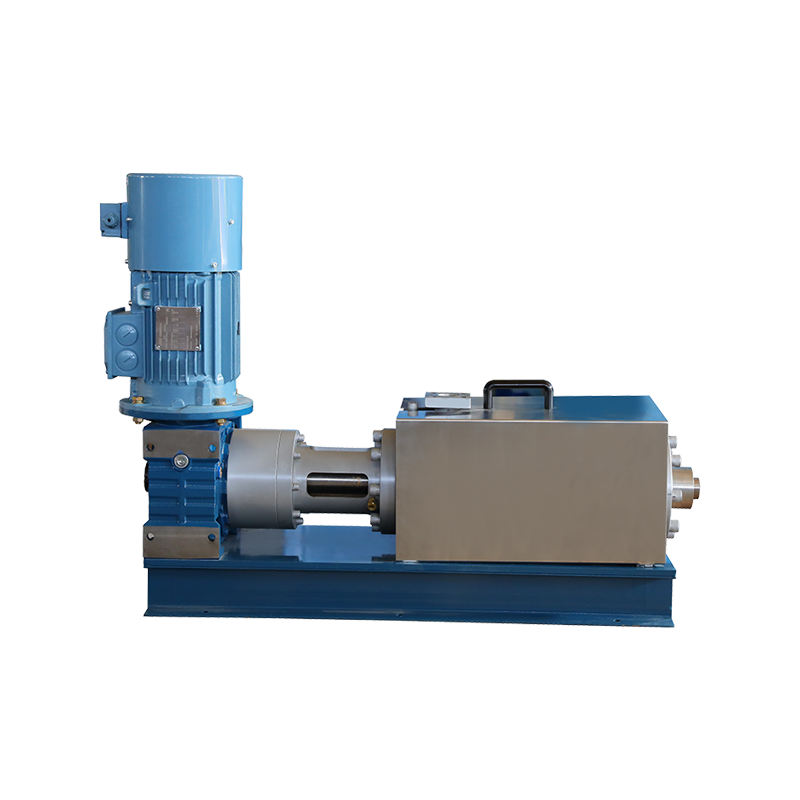

2. Metering feeding device: guarantee of precise control
The metering feeding device is a key component in the masterbatch addition system. It is responsible for accurately metering the masterbatch in the storage bin according to a predetermined ratio and continuously and stably feeding it into the melt mixing unit. Its performance directly affects the uniformity of the masterbatch dispersion in the chemical fiber and the quality consistency of the final product.

Common metering feeding devices include screw type, vibration type and belt type. The screw feeding device pushes the masterbatch to the discharge port through a rotating screw, and its speed can be accurately adjusted by the frequency converter to achieve precise control of the masterbatch flow rate. The vibration feeding device uses the vibration of the vibrator to make the masterbatch jump forward at a certain frequency and amplitude, which is suitable for masterbatches with poor fluidity. The belt feeding device conveys the masterbatch by the movement of the belt, which is suitable for large-flow feeding needs.

Regardless of the type, the metering feeding device must have a high degree of accuracy and stability. To achieve this goal, modern feeding devices are usually integrated with high-precision sensors and advanced control systems, which can monitor the masterbatch flow in real time and automatically adjust the feeding speed according to the feedback signal to ensure the accuracy of the masterbatch addition ratio. In addition, the design of the feeding device must also consider easy cleaning and maintenance to reduce cross-contamination and downtime during production.

3. Melt mixing unit: the core of uniform dispersion
The melt mixing unit is the final link of the masterbatch addition system and the key to achieving uniform dispersion of the masterbatch in the chemical fiber melt. The unit is usually closely connected to the melt extruder of the chemical fiber production line. Through the high temperature and high pressure environment, the masterbatch is fully mixed with the base melt to form a uniform melt flow.

The design of the melt mixing unit needs to comprehensively consider the fluidity of the melt, the dispersibility of the masterbatch and the mixing efficiency. Its internal structure usually includes a mixing chamber, a dispersing element and a heating and cooling system. The mixing chamber provides enough space for the melt to fully contact the masterbatch; the dispersing elements, such as static mixers or dynamic agitators, promote the rapid dispersion of the masterbatch in the melt through specific flow channel design or rotational motion; the heating and cooling system is responsible for maintaining the temperature stability during the mixing process to ensure that the viscosity and fluidity of the melt meet the mixing requirements.

In order to achieve efficient dispersion of the masterbatch, the operating parameters of the melt mixing unit, such as temperature, pressure, mixing time, etc., need to be carefully designed and optimized. Too high temperature may cause melt degradation, while too low temperature will affect the dispersion effect of the masterbatch. Similarly, the choice of pressure also needs to balance the relationship between mixing efficiency and equipment bearing capacity. Therefore, in actual production, the melt mixing unit is often equipped with an advanced control system that can automatically adjust the operating parameters according to the production formula and real-time working conditions to ensure the stability of the mixing process and the uniformity of product quality.

4. System integration and automatic control
In the melt direct spinning masterbatch addition equipment, the masterbatch storage bin, metering feeding device and melt mixing unit do not exist in isolation, but work together as a whole system. In order to achieve efficient and stable operation of this system, the application of automatic control technology is particularly important.

By integrating sensors, actuators and control systems, the masterbatch adding equipment can realize the automation of the whole process from masterbatch storage, metering feeding to melt mixing. The control system automatically adjusts the operating parameters of each unit according to the preset production formula and real-time feedback signals to ensure the accuracy of the masterbatch addition ratio and the stability of the mixing process. At the same time, the automatic control system can also realize remote monitoring and fault diagnosis of the equipment, greatly improving production efficiency and the convenience of equipment maintenance.
