Wholesale Multifunctional Flexible Pilot Spinning Machine

  • SF-01
  • SF-01
  • SF-01
  • SF-01

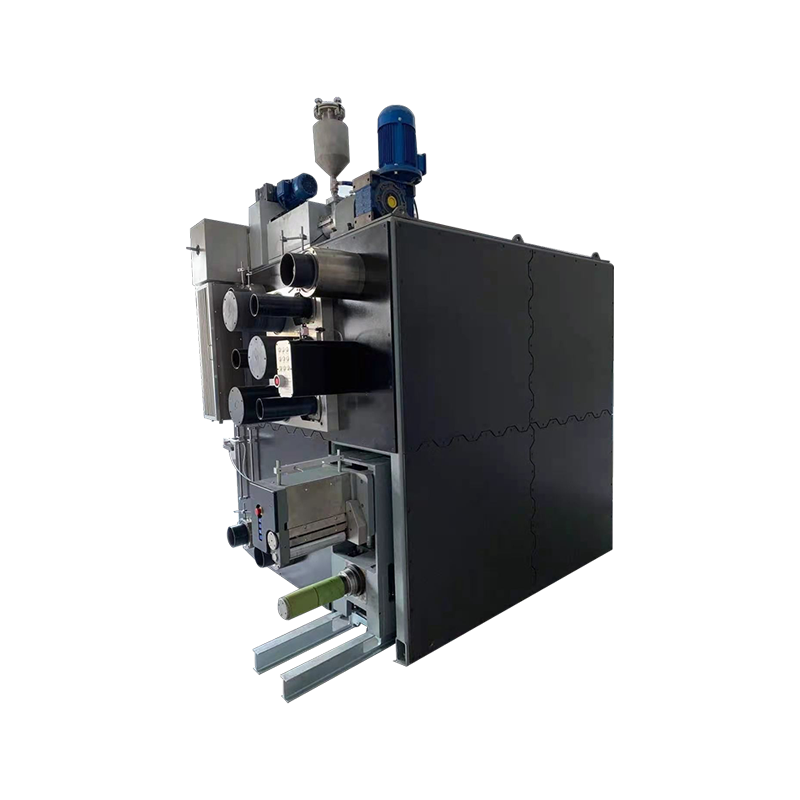

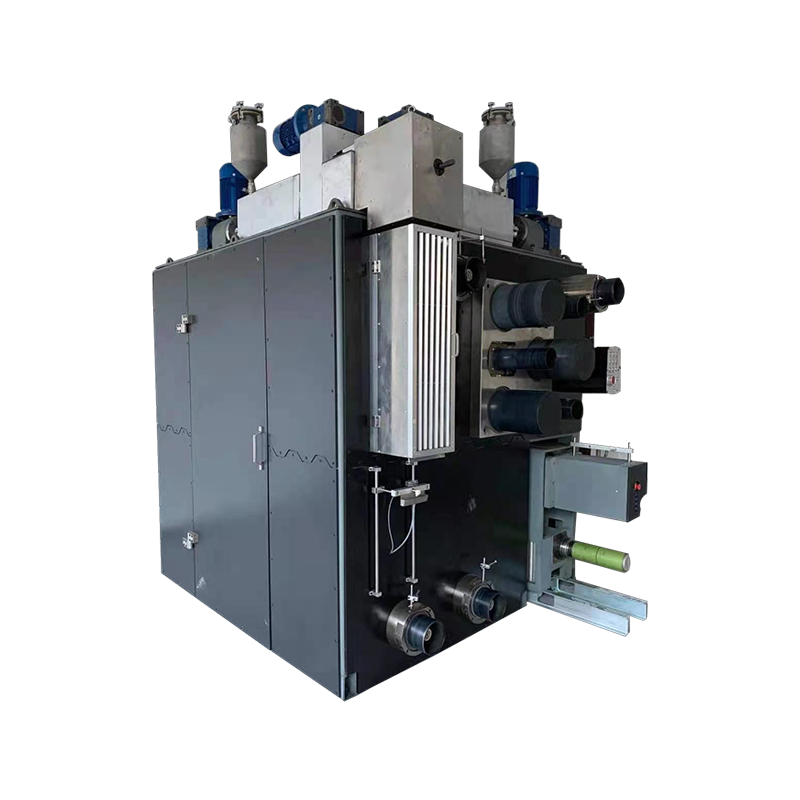

Multifunctional Flexible Pilot Spinning Machine

SF-01

1. The multifunctional flexible pilot spinning machine is developed by Jiaxing Shengbang Machinery Equipment Co., Ltd., based on years of experience in the chemical fiber spinning field and system integration manufacturing technology. It can be widely applied in major research institutions, universities, and chemical fiber spinning manufacturers. It occupies a small area, with components including screw extruder, metering pump, spinning box, side-blow wind, oiling device, yarn guide discs, heated rollers for drawing, air conditioning system, and electrical control system, all integrated together without installation. After the complete spinning pilot machine is positioned, it can be used by simply connecting the power supply and compressed air. It can spin polyester (PET), nylon (PA6, PA66), polypropylene (PP), and other materials, including medical-grade PET, PA, PP, etc.


2. Our Customers:

Donghua University
Henan University of Engineering
Wuhan Textile University
Sichuan Silk Research Institute
Qingdao University
Chengdu Textile College
Huafon Group
Wankai New Materials Co., Ltd.
Suzhou Spinneret Fiber Technology Co., Ltd.
Clariant Chemicals (Shanghai) Co., Ltd.
Shenzhen Great Sail Industrial Co., Ltd.

  • SF-01
  • SF-01
  • SF-01
  • SF-01

Product Description

Name

Multifunctional Flexible Pilot Spinning Machine

Model

SF-01

Material

Various materials such as polyester (PET), nylon (PA6, PA66), polypropylene (PP), etc

Process

UDY, POY, MOY, FDY

Warranty

1 Year

Dimension (L*W*H)mm

2000mm×3100mm×2700mm

No. of  Bobbin

1~2

The Max Winding Speed (Mechanical)

5500m/min

Winding Speed (Working)

300m/min~5000m/min

Traverse Mode

Traverse

Screw

Screw 1: φ25mm,L/D: 28:1

Screw 2: φ25mm,L/D: 28:1

Diameter of Spinneret

φ85mm

Godet

3 Hot Godets(Φ220mm×280mm)and 3 Separator Rolls(Φ110mm×280mm)

Automatic

Semi-automatic(fully automatic mode available)

Heating Method

Steam Jacket, Induction Heating, Non-contact Thermometry

Max Temperature

240℃,±1℃

Power

60KW

¥1,200,000 - ¥2,000,000

Standard type (design patent number: ZL 2021 3 0347197.7)

Client: Donghua University

About Us

Jiaxing Shengbang Mechanical Equipment Co., Ltd.

Jiaxing Shengbang Mechanical Equipment Co., Ltd. is a comprehensive technological advantage, specializing in the development, production, sales and maintenance of key parts and spinning machines, and R&D of new materials and fabrics. We are China Wholesale SF-01 Suppliers and SF-01 Company. Shanghai Panguhai Technology Engineering Co., Ltd. is the sales and R&D headquarters of our company, Haian Jingtong New Material Technology Co., Ltd. is the production and experimental base of our machinery and yarn.
We own advanced and perfect equipment for production, inspection, testing and maintenance of spinning machinery, such as advanced CNC machine tools, Shenk Balancing Machine, plasma-coating equipment from AVIC Manufacturing Technology Institute and temperature calibration for hot godet from Barmag. Based on our rich experience and mature systematization technology in filament yarn production, we have developed a revolutionary multi-purpose spinning test machine, with which the single-component yarn, bicomponent yarn, multi-component yarn, POY, FDY, medium-strength yarn and filament yarn can be easily produced. What’s more, we own a yarn spinning lab for sample making, where customers can do spinning tests by themselves as well.
Via the advanced technology, equipment and our convenient location, we have successfully set up cooperation relationships with Tongkun Group, Xin Feng Ming Group, Hengli Group and Shenghong Corp., as well as many other well-known chemical fiber companies in China, and our quality and service have been widely approved by the customers.
